PIR Motion Sensor LED Ceiling Light – Arduino Compatible

Rajkumar Sharma
2.170 Views
moderate
Tested
SKU: EL106732
Quote Now
0 Likes

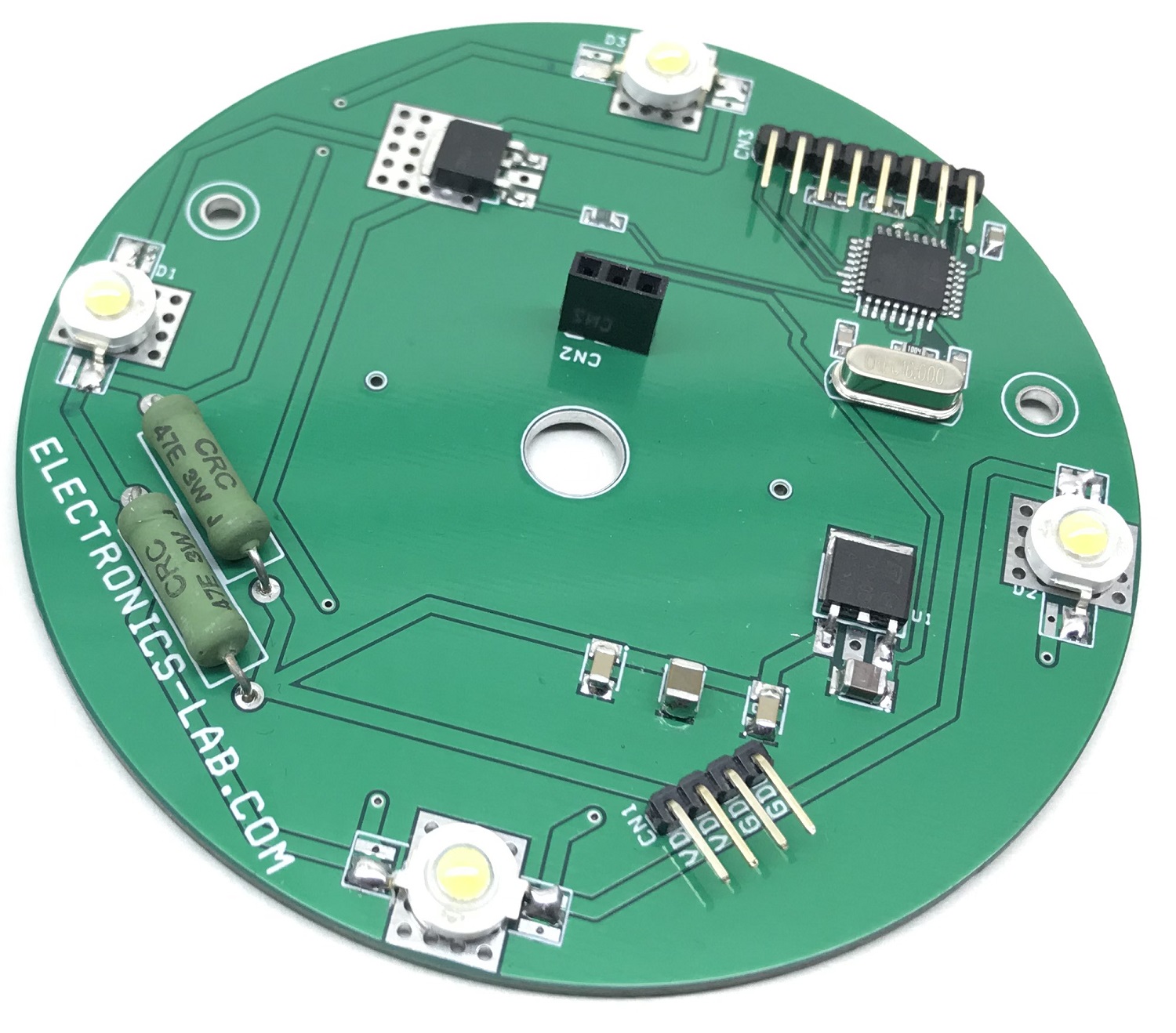

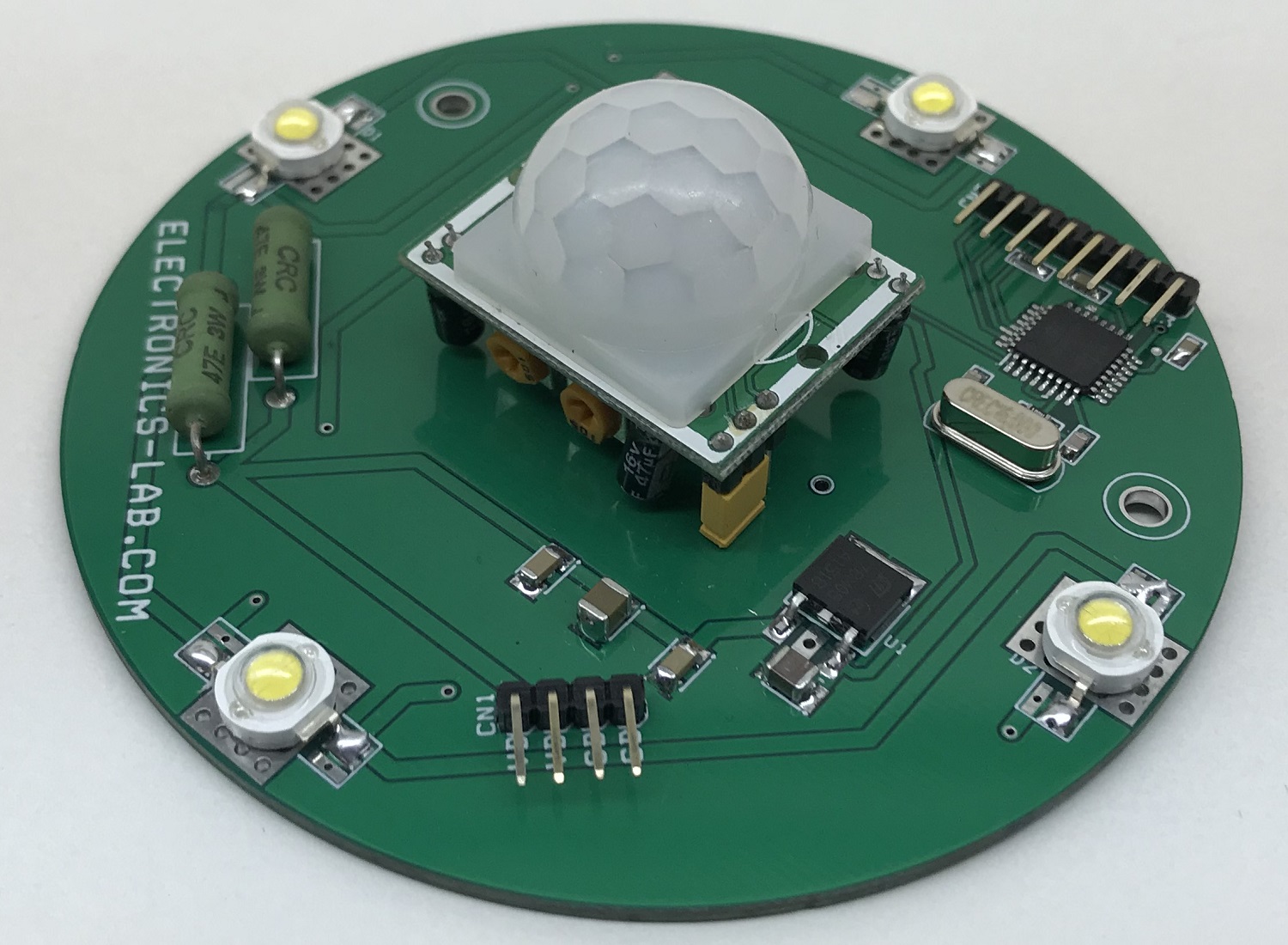

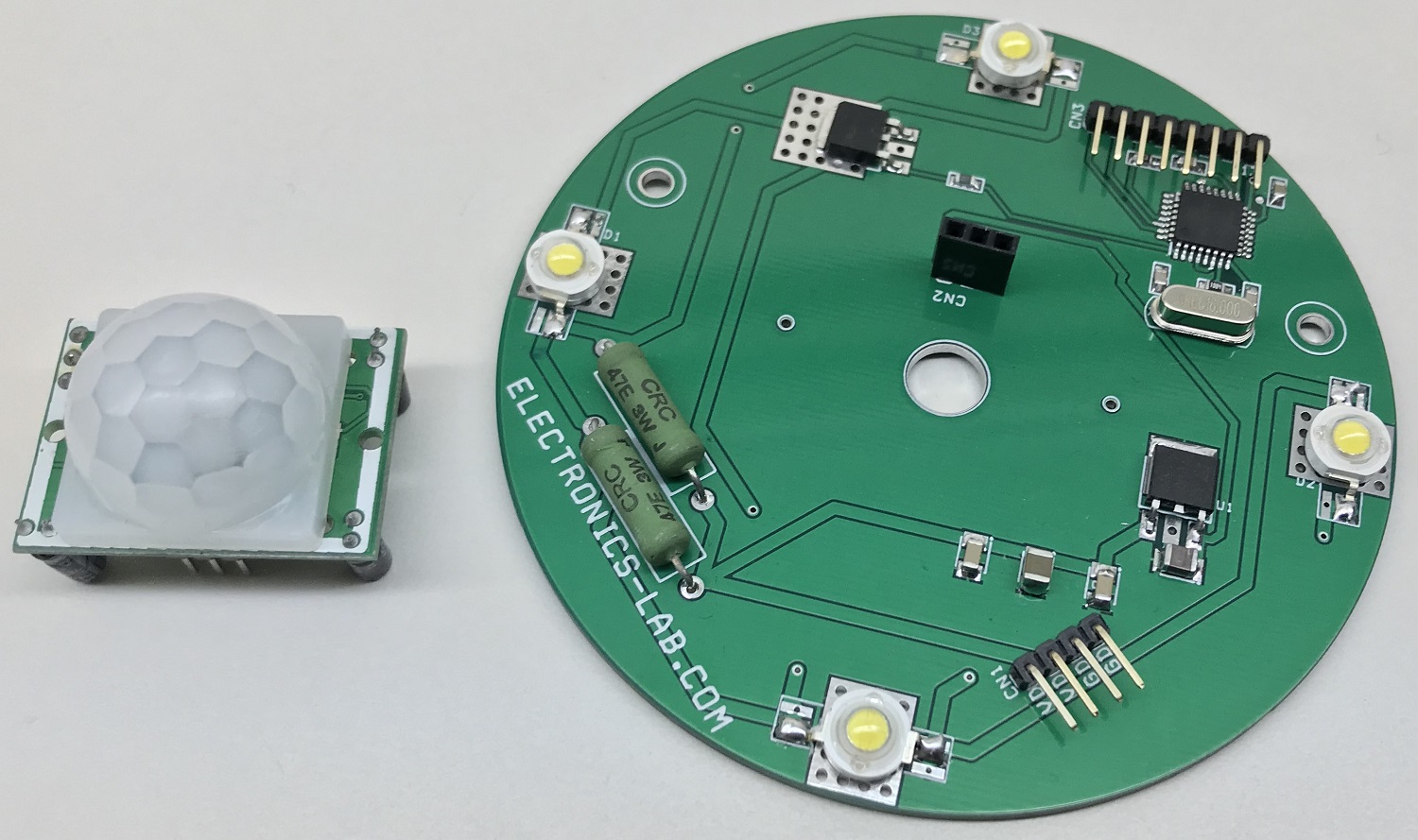

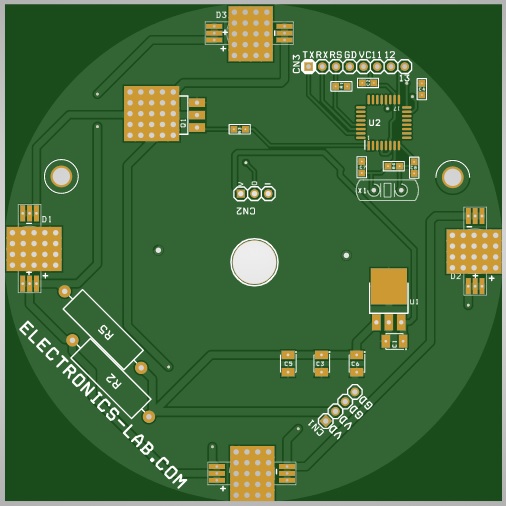

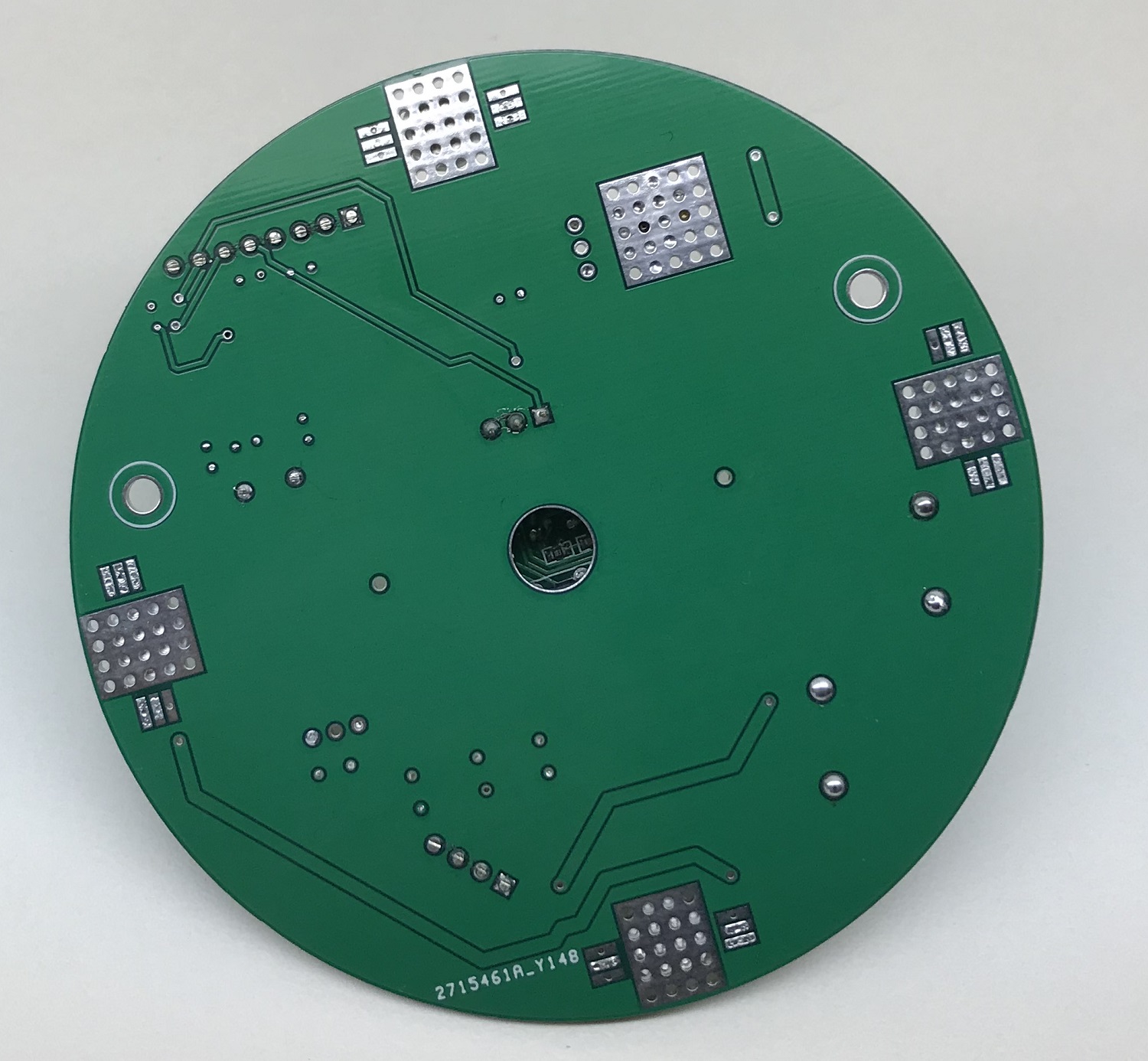

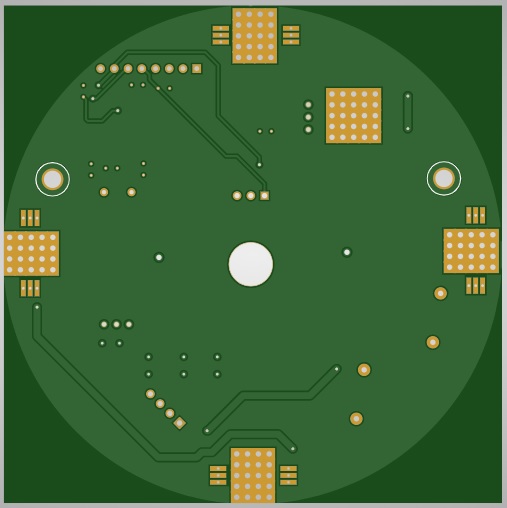

This motion sensor LED ceiling light board has been designed using 4 white LEDs each of 1-3W, PIR sensor module, Atmega328 microcontroller, low ohm IRLR7843 MOSFET, and few other components. The PIR sensor detects the infra-red rays emitted by human motion within the detection area and switches on the 4 white LEDs for 10 seconds. The project helps in energy-saving applications and new green building projects. Detecting distance: 1 to 20 feet. Detecting angle: 360 degrees. Installation height 2-15 feet. 2 mounting holes are provided to mount this board. It is advisable to use this board indoors.

The operation of this circuit is simple, the motion sensor provides a TTL output pulse when it detects the human presence, then the ATmega328 microcontroller detects the trigger on digital in D12 and sets the digital pin D3 high for 10 seconds, this high signal triggers the MOSFET which drives power to 4 LEDs in parallel. Resistors R2 and R5 act as current limiting resistors, U1 is a 5V regulator that provides 5V DC to the microcontroller and sensor from an input supply 12V DC. The operating power supply is 9-12V DC and its draws 500mA of current. The project tested with 3W white LEDs, but any other LED can be used, but take care of current limiting resistor R2 and R5 respectively to LEDs current requirements. CN1 4 pin male header is provided for power input, CN2 SIP8 connector provided for bootloader burning and programming using Arduino IDE.

Programming the Atmega328

The project is Arduino compatible and can be used in many lighting applications. You will have to just write your own code and program it to Atmega328. Example Arduino code is provided to help you to test the project. The code will turn the LEDs ON for 10 seconds when it detects human motion and may repeat if still motion is detected again. The user may easily increase the LED on time in Arduino Code. Arduino digital pin D12 connected to the PIR sensor module and D3 drives the LEDs.

Note:A new Atmega328 Microcontroller requires Bootloader and Code uploading, SIP8/CN2 connector provided for both, more information is available here

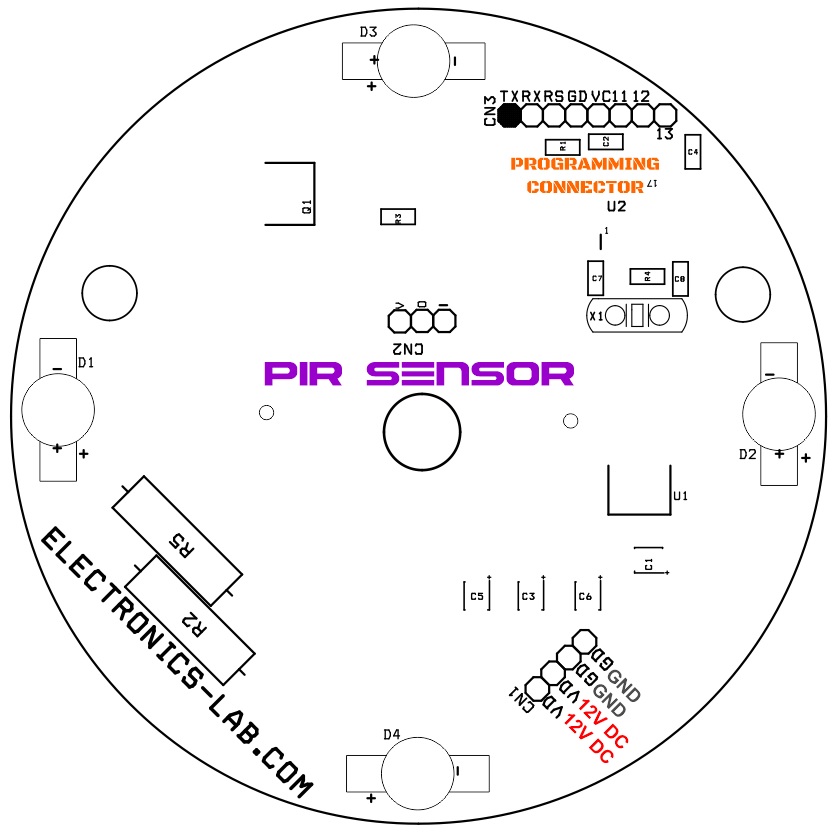

Please refer to the programming connection diagram above to program the board. Arduino example code is available at the download link at the end of the page.

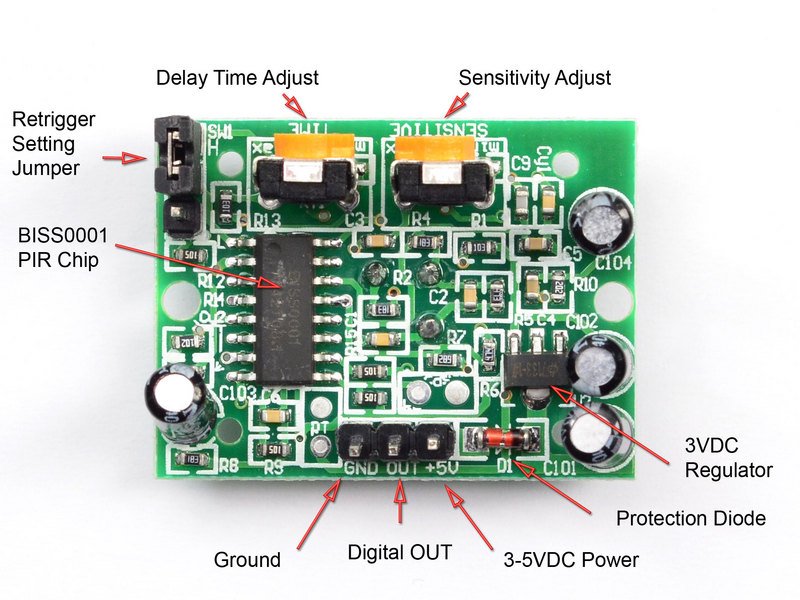

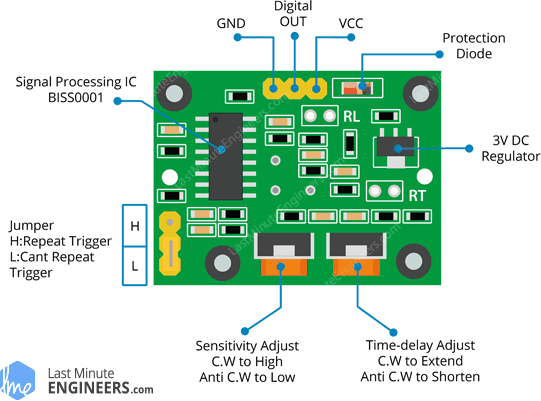

PIR Motion Sensor

PIR sensors are used to detect motion from pets’ humanoids from about 20 feet away. The operating principle of such sensors is straightforward: a crystalline sensing element generates an electric charge when exposed to infrared radiation, such as body heat. The more infrared radiation present, the higher the voltage generated. A Fresnel lens is used to focus the infrared radiation on the sensor, and an onboard amplifier boosts the signal and trips an output if it starts changing too rapidly.

More info about the PIR sensor available here: https://www.seeedstudio.com/PIR-Motion-sensor-module-p-74.html

Features

Power Supply 9-12V DC
Current consumption 500mA
On Board 4 x 3W White LEDs
PCB diameter: 44.6 mm

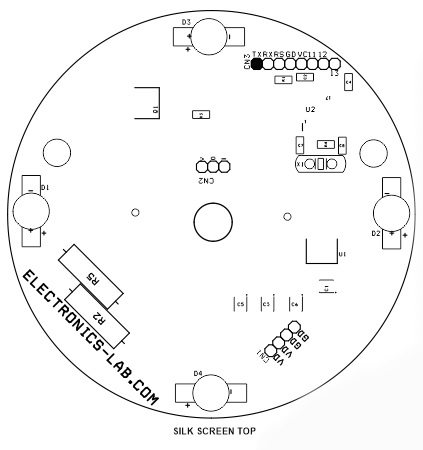

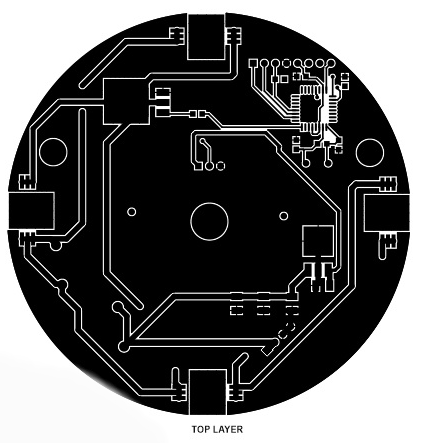

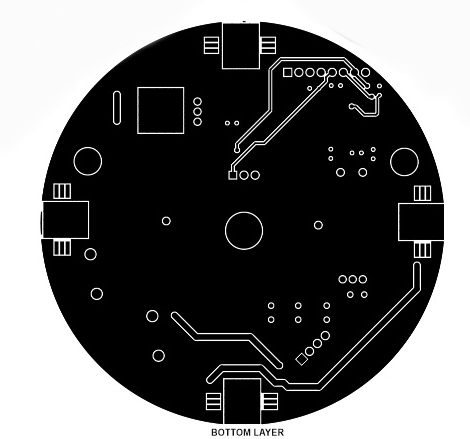

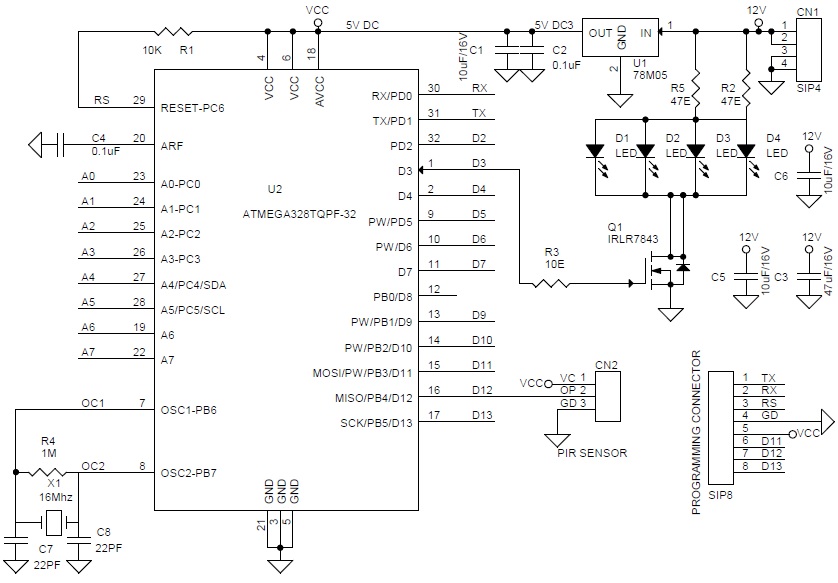

Schematic

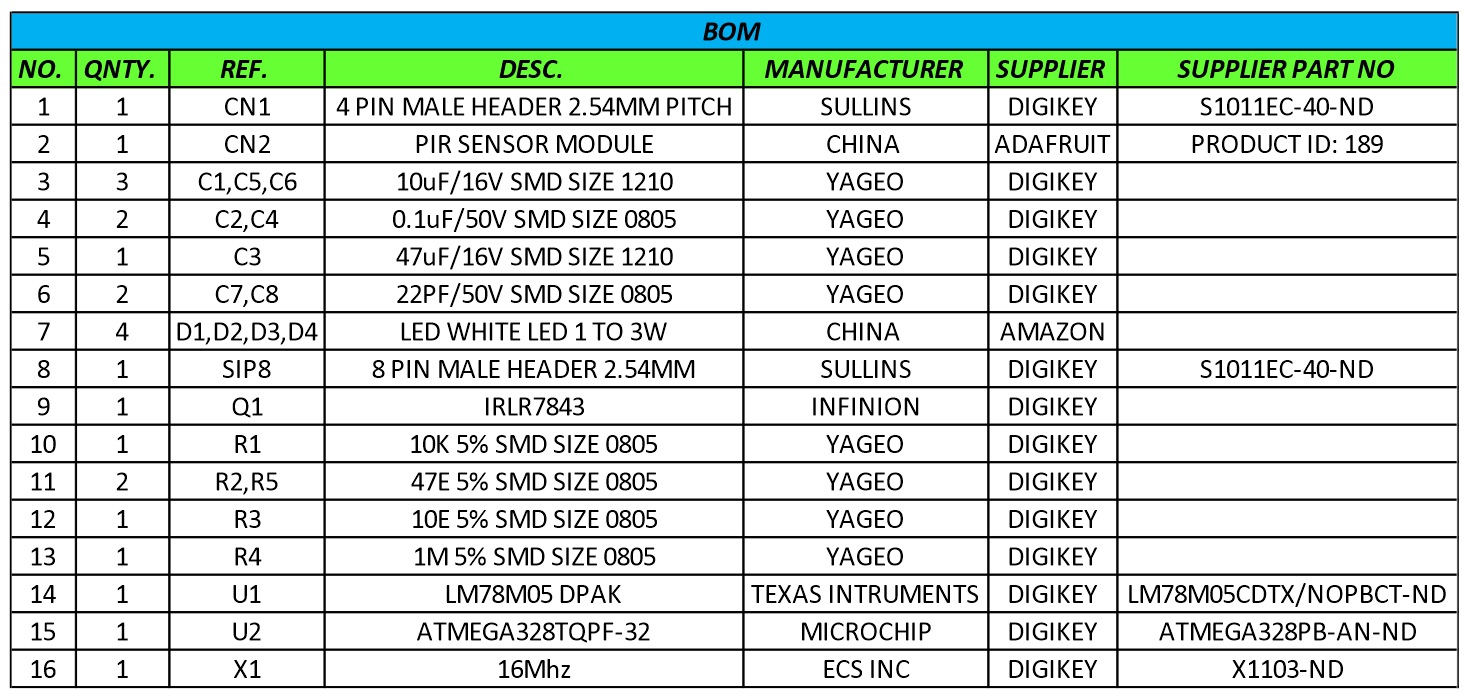

Parts List

NO.	QNTY.	REF.	DESC.	MANUFACTURER	SUPPLIER	SUPPLIER PART NO
1	1	CN1	4 PIN MALE HEADER 2.54MM PITCH	SULLINS	DIGIKEY	S1011EC-40-ND
2	1	CN2	PIR SENSOR MODULE	CHINA	ADAFRUIT	PRODUCT ID: 189
3	3	C1,C5,C6	10uF/16V SMD SIZE 1210	YAGEO	DIGIKEY
4	2	C2,C4	0.1uF/50V SMD SIZE 0805	YAGEO	DIGIKEY
5	1	C3	47uF/16V SMD SIZE 1210	YAGEO	DIGIKEY
6	2	C7,C8	22PF/50V SMD SIZE 0805	YAGEO	DIGIKEY

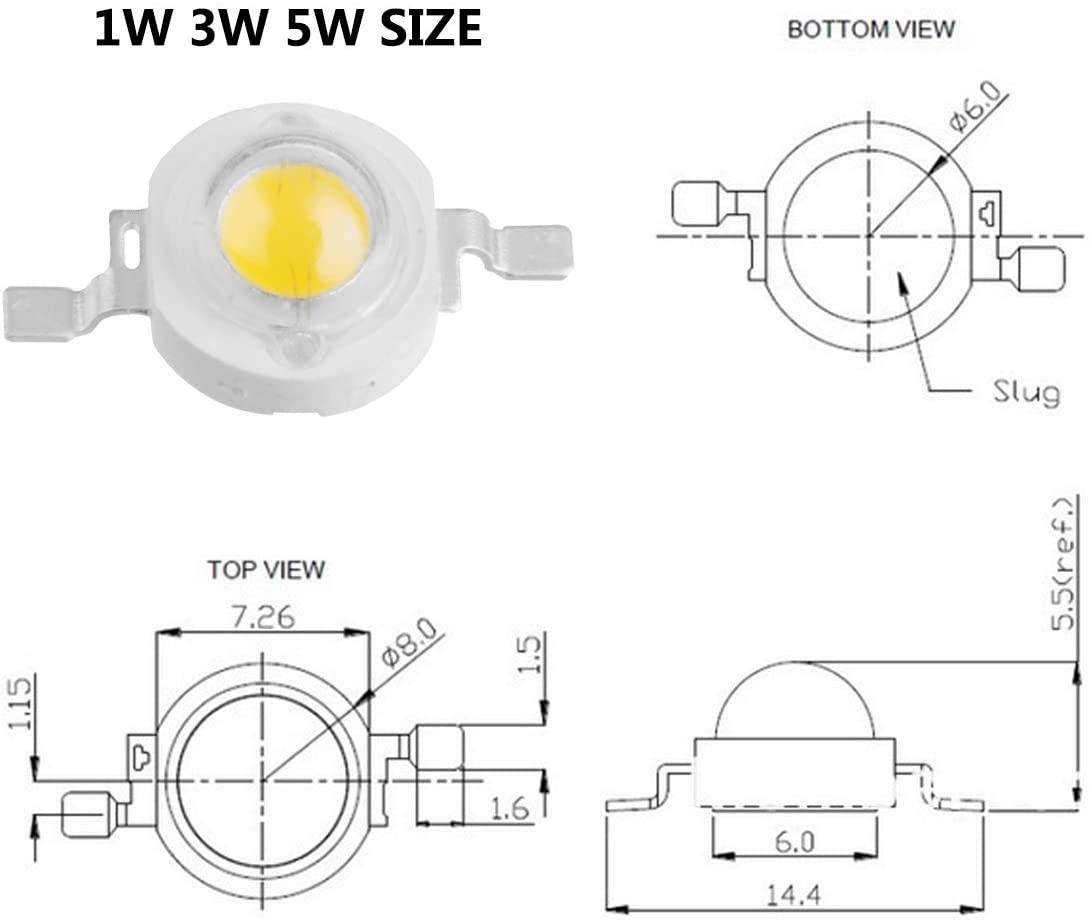

7	4	D1,D2,D3,D4	LED WHITE LED 1 TO 3W	CHINA	AMAZON
8	1	SIP8	8 PIN MALE HEADER 2.54MM	SULLINS	DIGIKEY	S1011EC-40-ND
9	1	Q1	IRLR7843	INFINION	DIGIKEY
10	1	R1	10K 5% SMD SIZE 0805	YAGEO	DIGIKEY
11	2	R2,R5	47E 5% SMD SIZE 0805	YAGEO	DIGIKEY
12	1	R3	10E 5% SMD SIZE 0805	YAGEO	DIGIKEY
13	1	R4	1M 5% SMD SIZE 0805	YAGEO	DIGIKEY
14	1	U1	LM78M05 DPAK	TEXAS INTRUMENTS	DIGIKEY	LM78M05CDTX/NOPBCT-ND
15	1	U2	ATMEGA328TQPF-32	MICROCHIP	DIGIKEY	ATMEGA328PB-AN-ND
16	1	X1	16Mhz	ECS INC	DIGIKEY	X1103-ND
