Dual DC Motor Driver For Robot with L298

Rajkumar Sharma
22.914 Views
moderate
Tested
SKU: EL48591
Quote Now
0 Likes

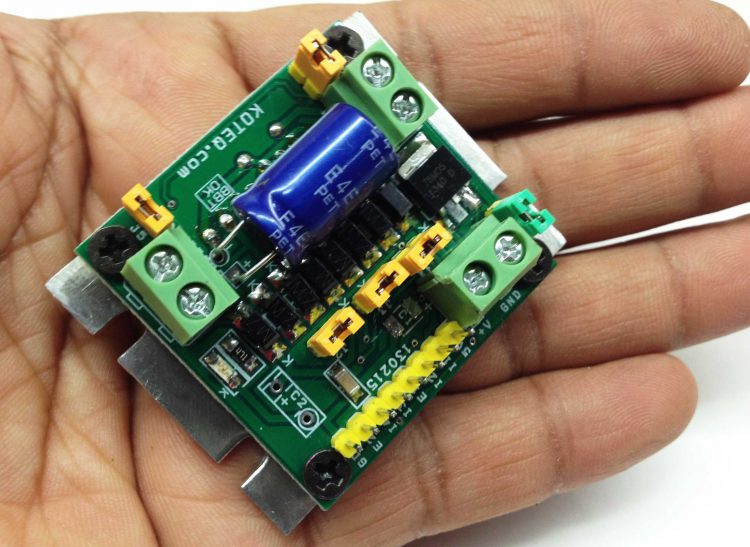

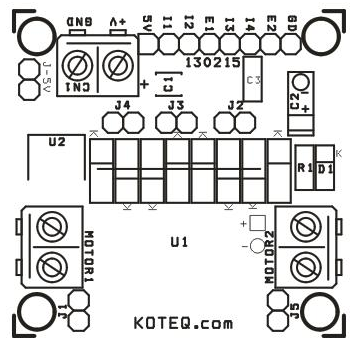

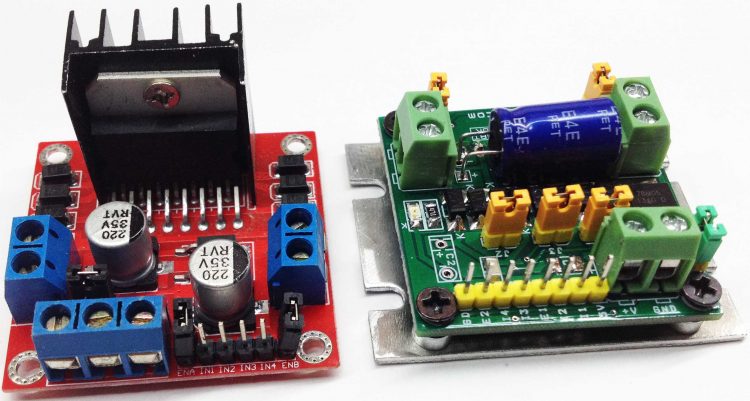

Dual Motor L298 H-Bridge Control project can control two DC motors connected to it. The circuit is designed around the popular dual H-Bridge L298 from ST. This board can be configured to drive a single motor with high current rating also. This can be achieved with the help of jumpers on the board. An onboard 5V regulator can take a maximum of 18V of DC input. Should you wish to drive this board with higher voltage than 18V, you will need to connect a external 5V regulated source to the logic circuit. For this you will need to remove J-5V. This board can fit in any small toy or robot due to small size and very low profile. L298 IC is mounted under the PCB in horizontal position to make board small and low profile to fit any small robot. On board 5V regulator can be used to power up external Micro-Controller board as well as internal logic supply.

Features

Motor supply: 7 to 46 VDC
Open J-5V Jumper if Input Motor Supply is above 18V ( Required External 5V for Logic)
Control Logic Input: Standard TTL logic level
Output DC drive to motor: up to 2 A each (Peak)
On Board 5V Regulator (Close J-5V to Use On Board 5V Regulator)
Enable and direction control pins available
External Diode Bridge for protection

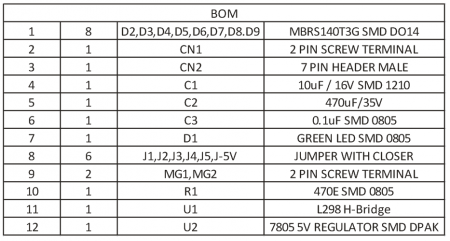

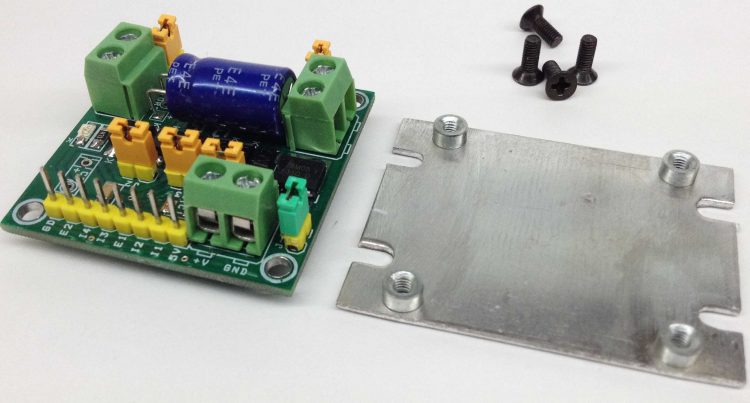

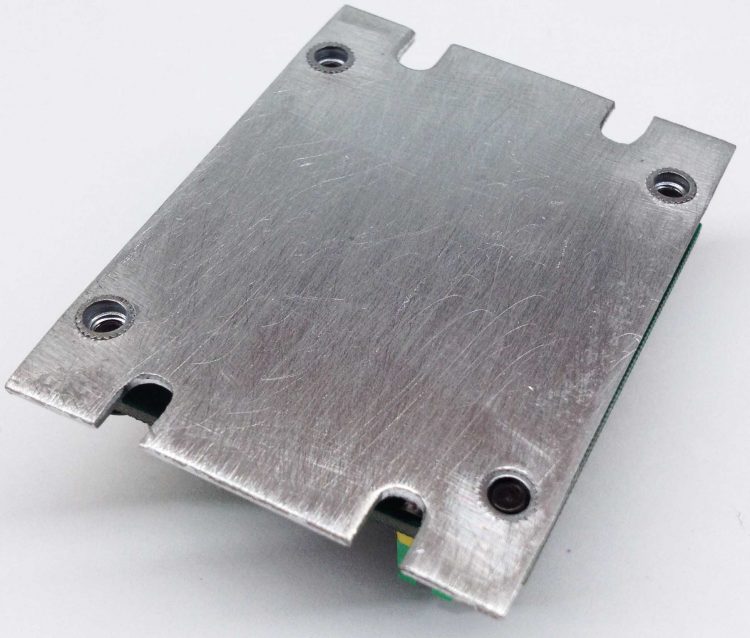

Heat-sink for IC
Power-On LED indicator

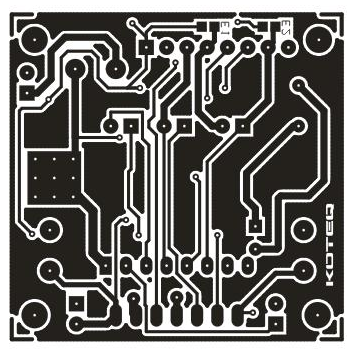

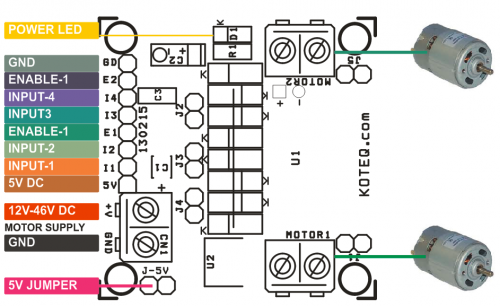

Header Connector for Inputs and PWM
On Board PCB Solderable Jumpers for Enable
Screw terminal connector for easy input supply (PWR) / output (Motor) connection
Four mounting holes of 3.2 mm each

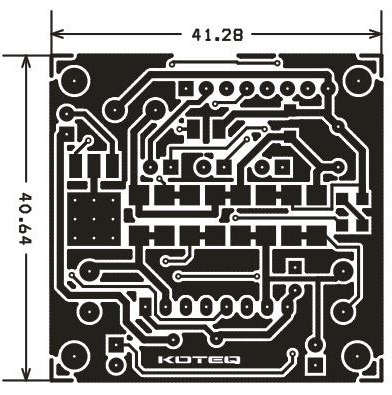

PCB dimensions 41X40mm
