Isolated Digital ON/OFF Switch for AC load
- Rajkumar Sharma
- 13.014 Views
- moderate
- Tested
- SKU: EL47525
- Quote Now
- 0 Likes
ON/OFF AC load Controller project offers simple On/Off Switch Control with two tact switch.
Specifications
- Input supply – 12 VDC @ 40 mA
- Output – upto 500 W – 230 VAC
- Onboard tactile switch for ON/OFF control
- Opto-isolated Triac based design
- Power-On LED indicator
- Power Battery Terminal (PBT) and Terminal pins for easy input / output connection
- Four mounting holes of 3.2 mm each
- PCB dimensions 44 mm x 86 mm
Schematic

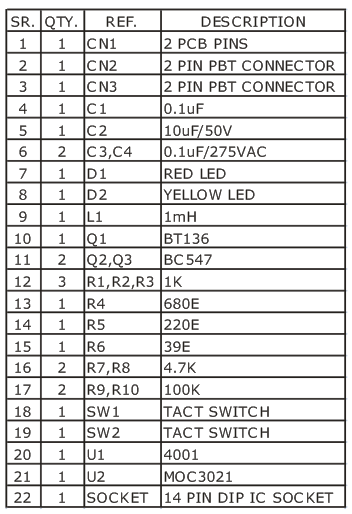

Parts List
Please follow and like us:

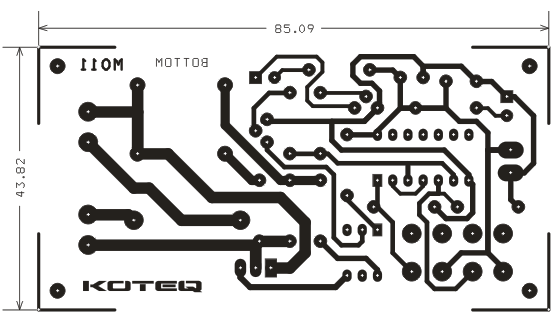

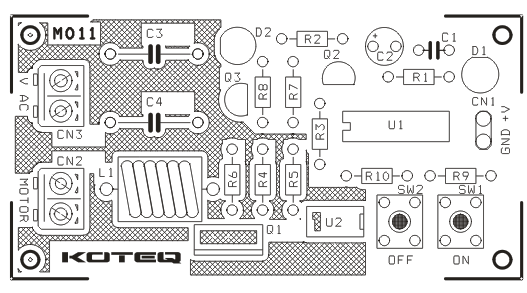

PCB
