16 High Power LEDs Knight Rider Light – Arduino Compatible

Rajkumar Sharma
2.503 Views
moderate
Tested
SKU: EL106464
Quote Now
0 Likes

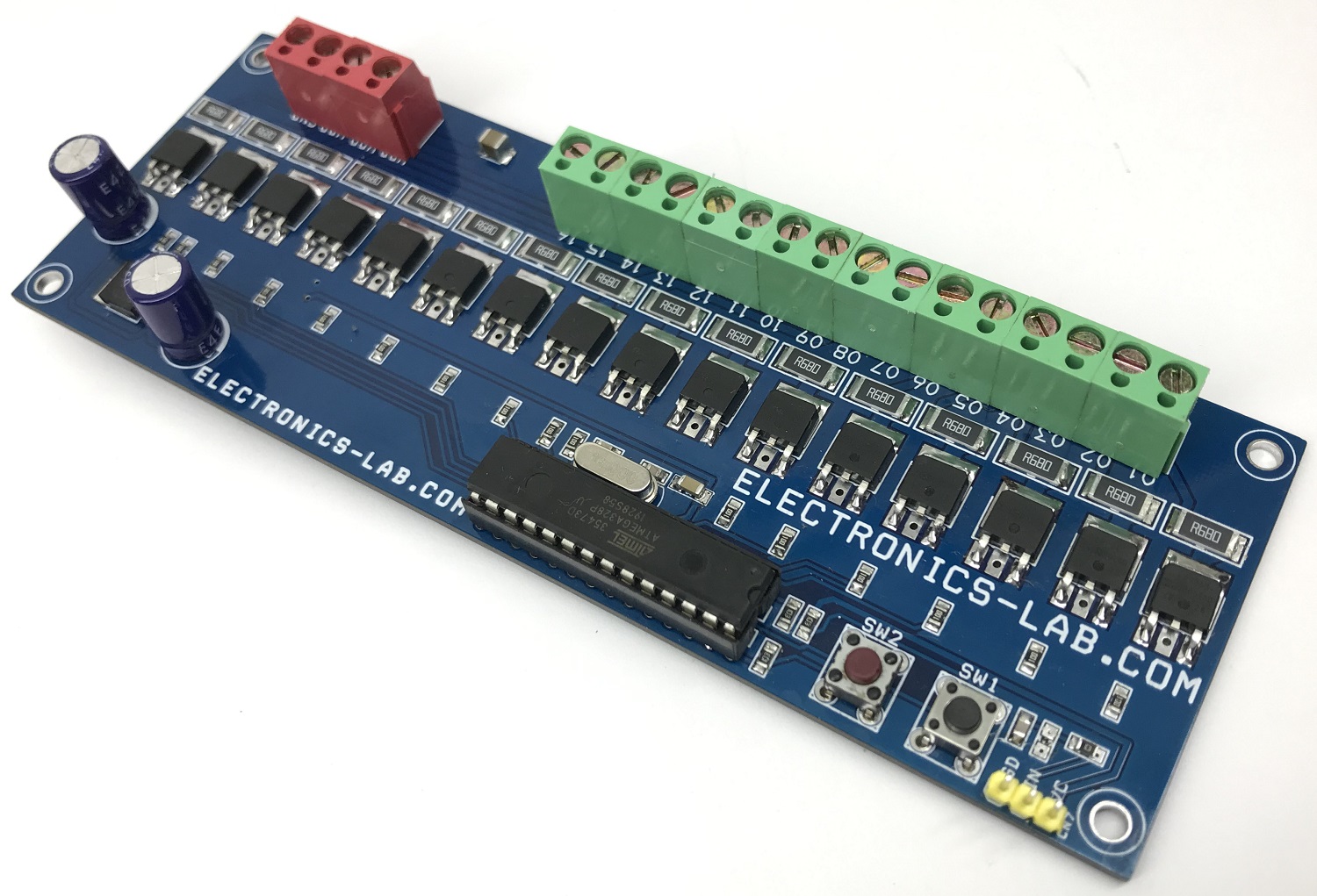

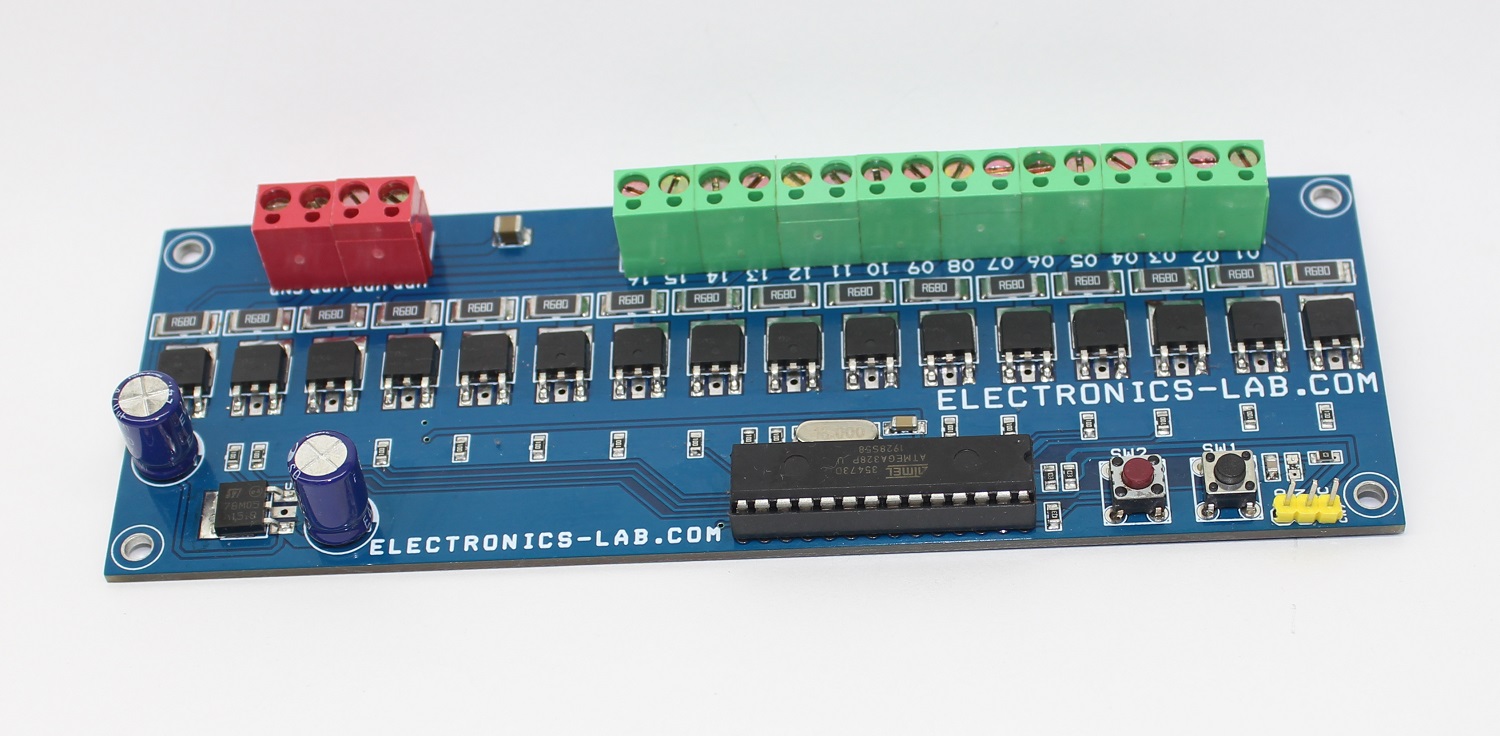

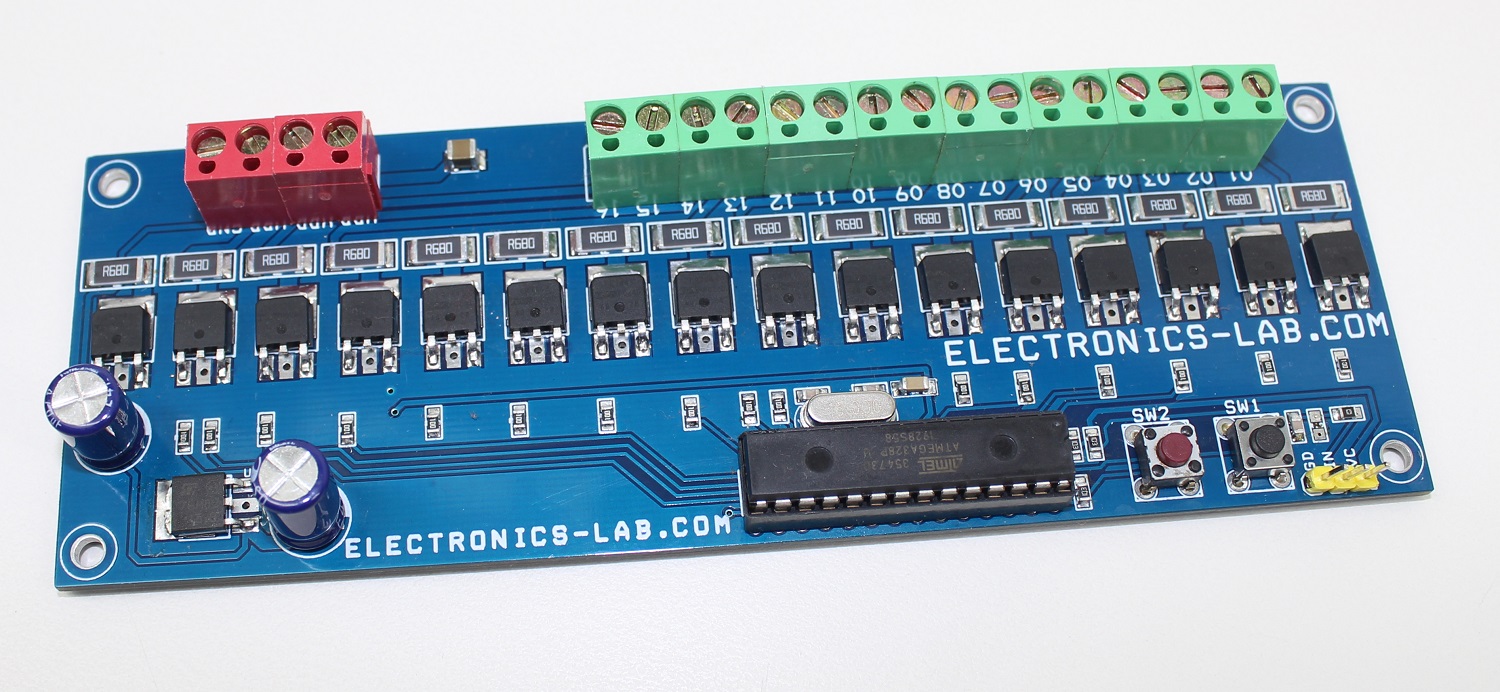

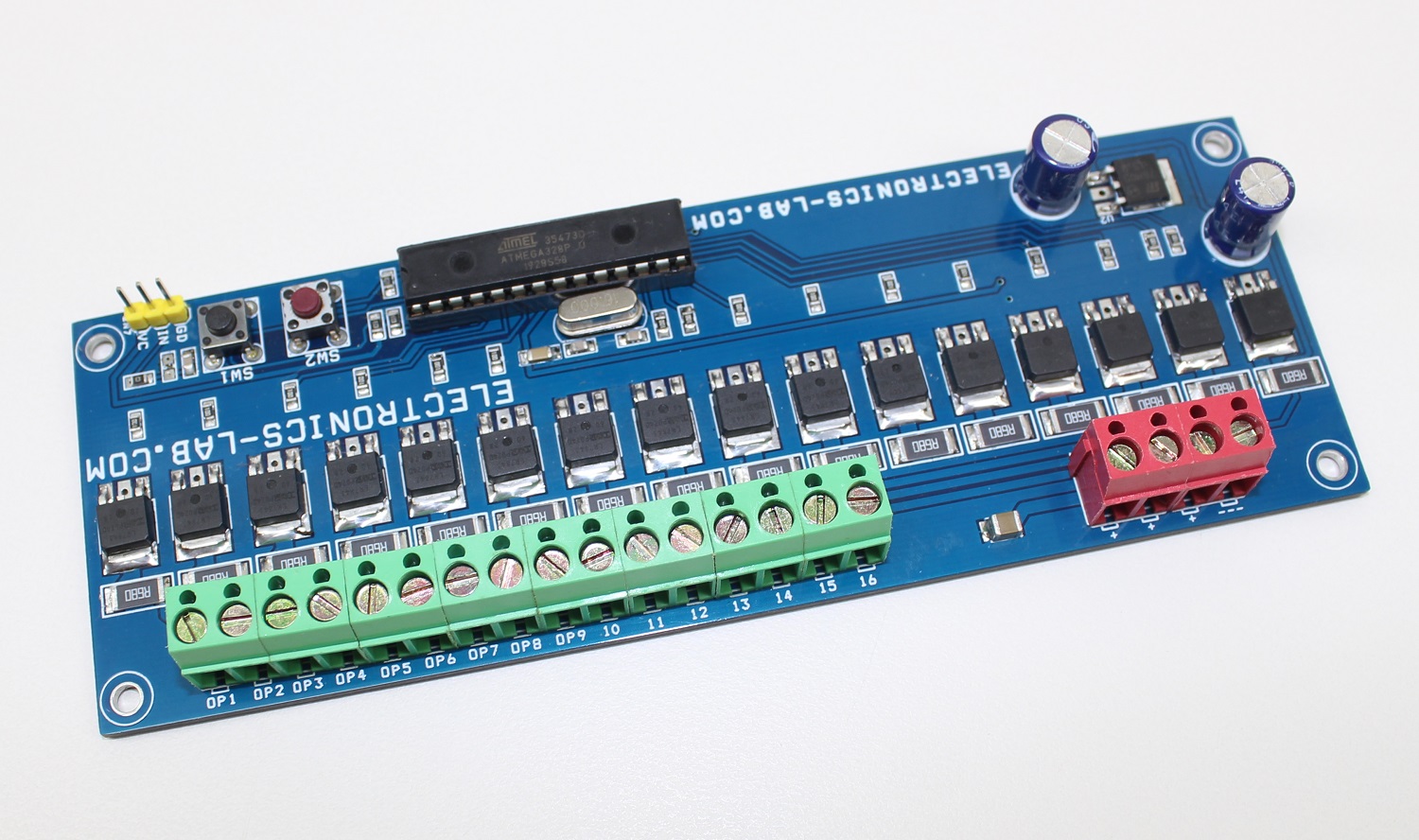

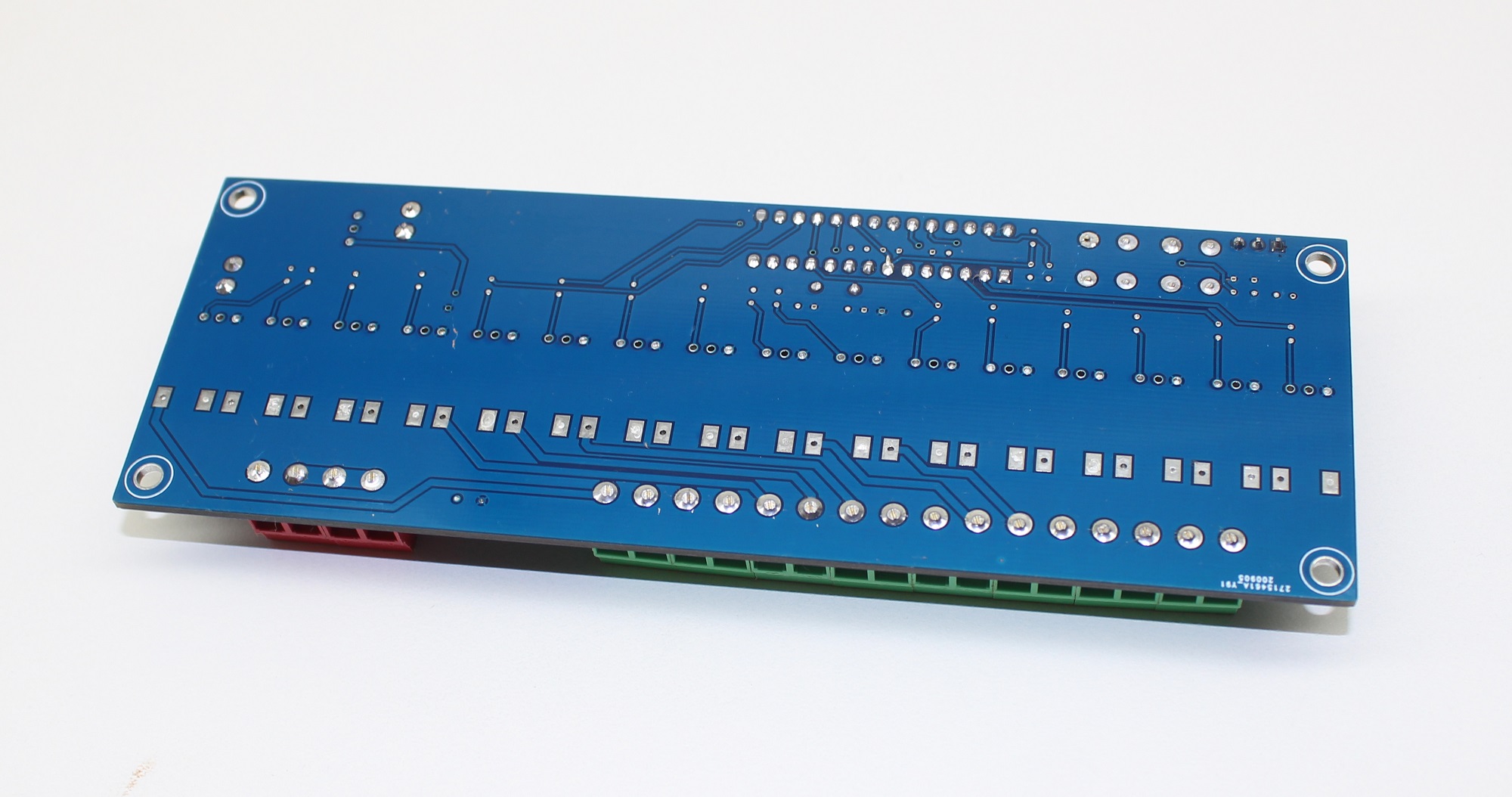

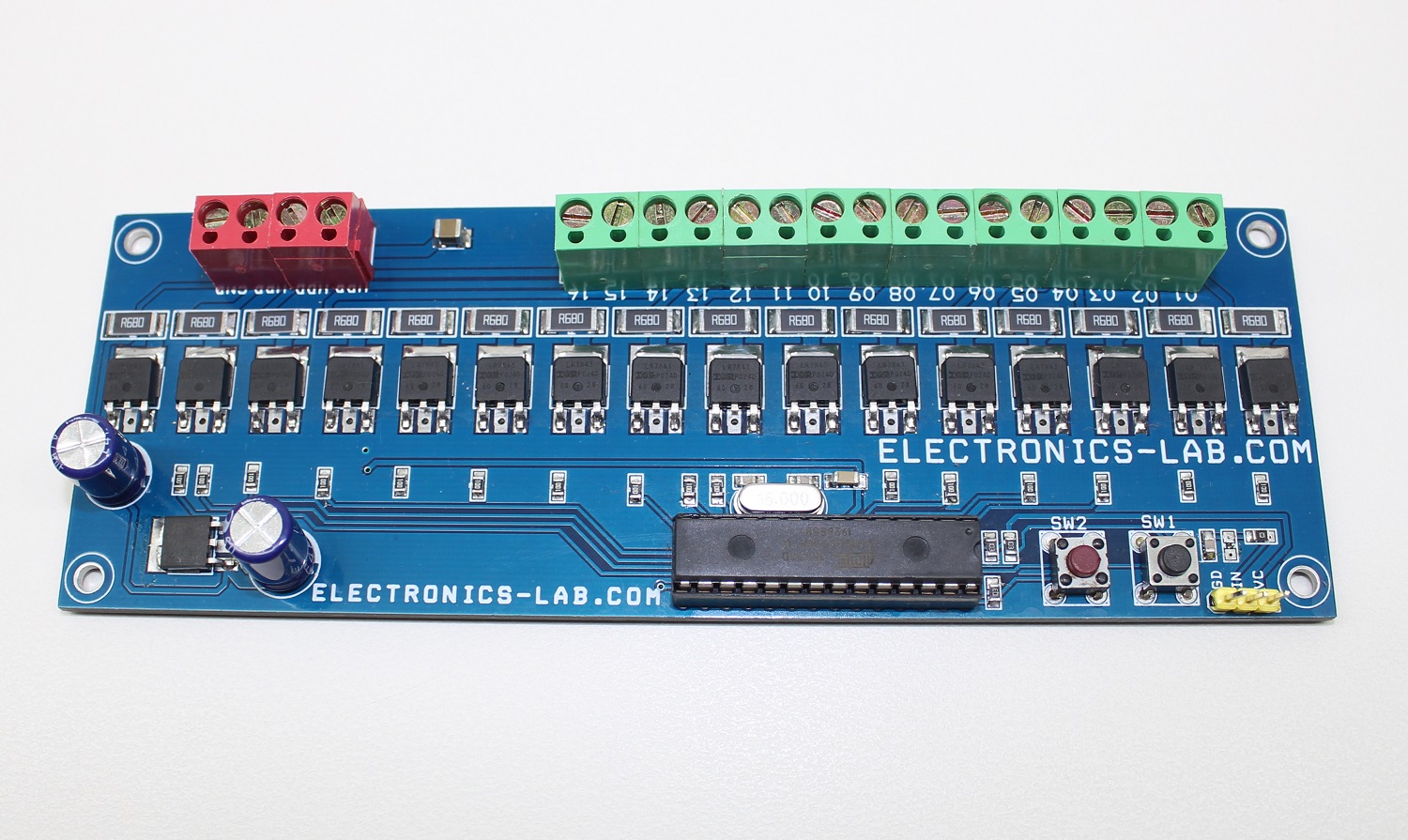

This is a Knight Rider LED Light and it is one of the best Arduino projects for beginners. This board drives 16 high-power LEDs to turn them ON one by one sequentially. This is an open-source Arduino compatible project that contains 16 high current MOSFETs, Atmega328 microcontroller, 5V regulator etc. The gate of IRLR7843 MOSFETs is connected to the I/O pins of the Atmega328 chip. Screw terminals are provided to connect the LEDs and power supply. Additional 2 x tactile switches and one connector for analog input are provided for further experiments. Operating power supply 12V to 15V DC, each output can drive 1A constant current load (1W to 12 W LED) without cooling and load up to 2A with forced cool air.

Features

Operating Power Supply 12 to 15V DC
Load: Each Channel up to 1A Constant @ room Temperature, 2A Constant with Fan
LED 1W to 12W (12-24W with proper cooling with Fan)
PCB dimensions: 154.14 x 53.97 mm

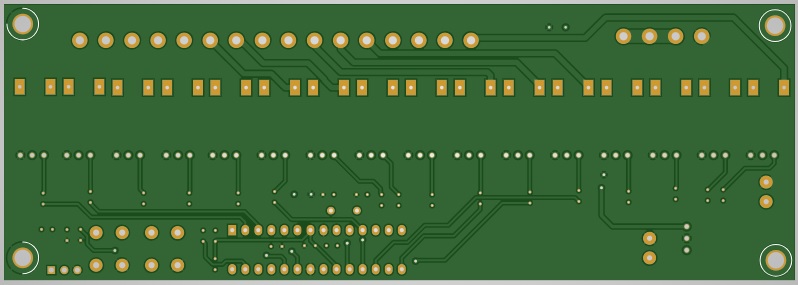

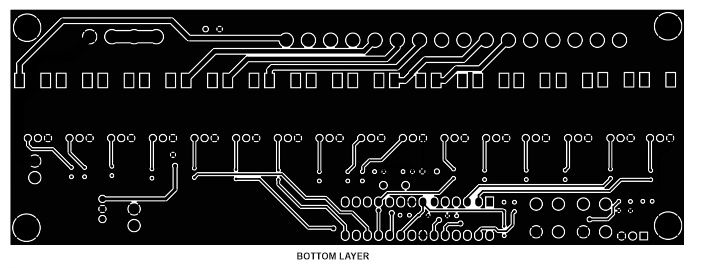

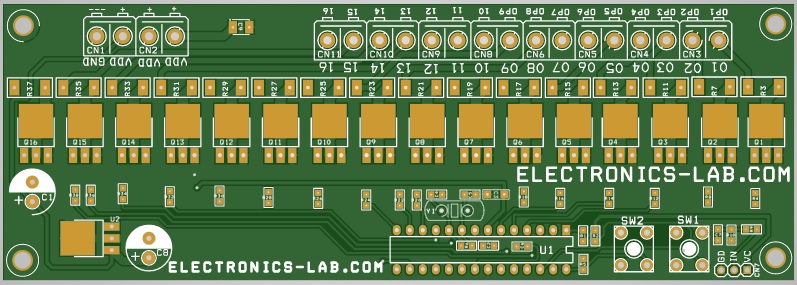

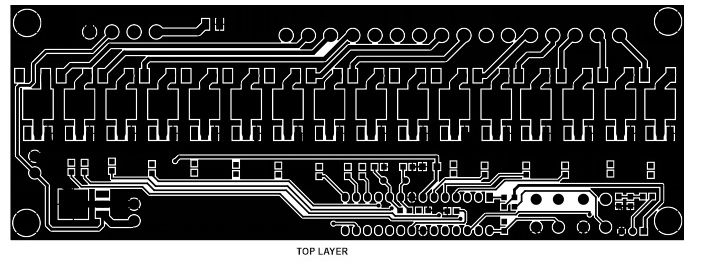

Components and Operations

R1>>Pullup for Reset Pin,
R3, R15, R23, R31, R7, R17, R25, R33, R11, R19, R27, R35, R13, R21, R29, R37 >> Optional Series Resistors for current limiting
R4, R16, R24, R32, R8, R18, R26, R34, R12, R20, R28, R36, R14, R22, R30, R38 >> Current Limiting Resistors for MOSFET Gate

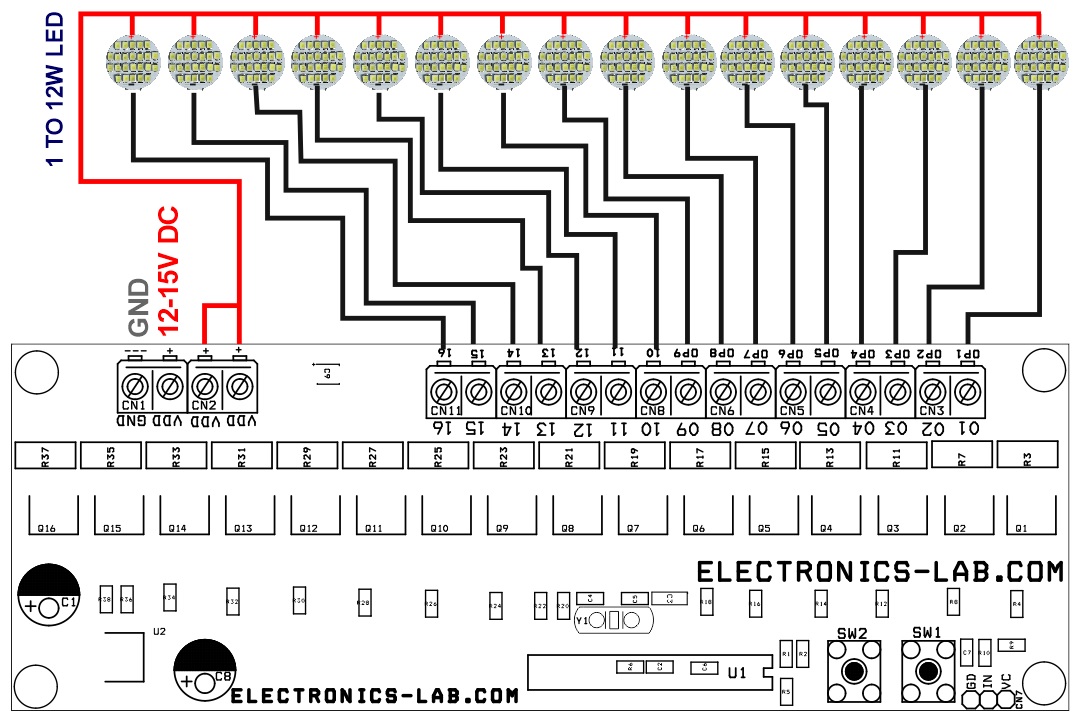

CN11, CN10, CN9, CN8, CN6, CN5, CN4, CN3, >> LED -/Cathode
CN2 >> LED +/Anode
CN1>> 12 to 15V Power Input
Capacitor C1, C8, C9 >> DC Bus Filter Capacitors
Capacitor C2, C3 >> DC Filter Capacitors for 5V Supply
LM78M05>> 5V Regulator provides 5V to Micro-Controller from 12V Supply
U1 ATMEGA328 >> Micro-Controller Loaded with Arduino Code
C6 >> Filter Capacitor for Ref Voltage
Crystal Y1, C4, C5, R6 >> Oscillator for Atmega328 Micro-Controller
SW1, SW2, R2, R5, R10, C7, R9, CN7, >> Optional for additional development

Arduino Pins

D0, D1, D2, D3, D4, D5, D6, D7, D8, D9, D10, D11, D12, D13, A0, A1 >> 16 LEDs
A4, A4 >> Optional Tactile Switches
A3>> Optional Analog Input

Note: This is an open-source Arduino compatible project, that can be used in many other applications which require 16 channel high power drivers. The board can drive 12V LEDs directly, if LEDs doesn’t have a series resistor or constant current circuitry, use series resistors R3, R15, R23, R31, R7, R17, R25, R33, R11, R19, R27, R35, R13, R21, R29, R37

Code

Arduino example code is provided, follow the instructions below to load the Arduino Code into a new ATMEGA328 chip

https://www.arduino.cc/en/Tutorial/BuiltInExamples/ArduinoToBreadboard

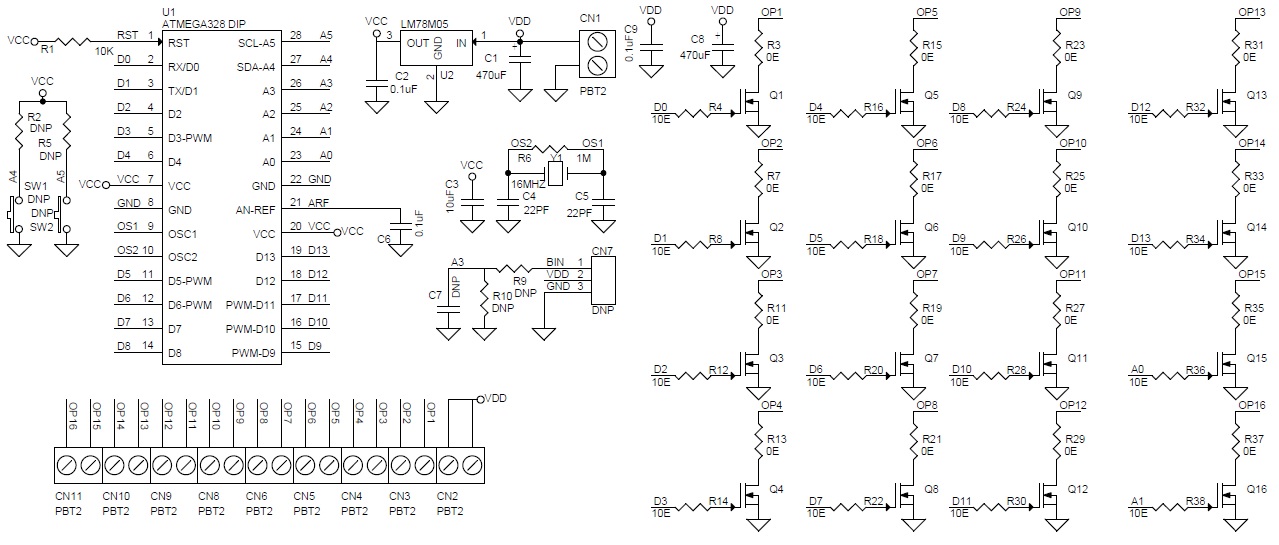

Schematic

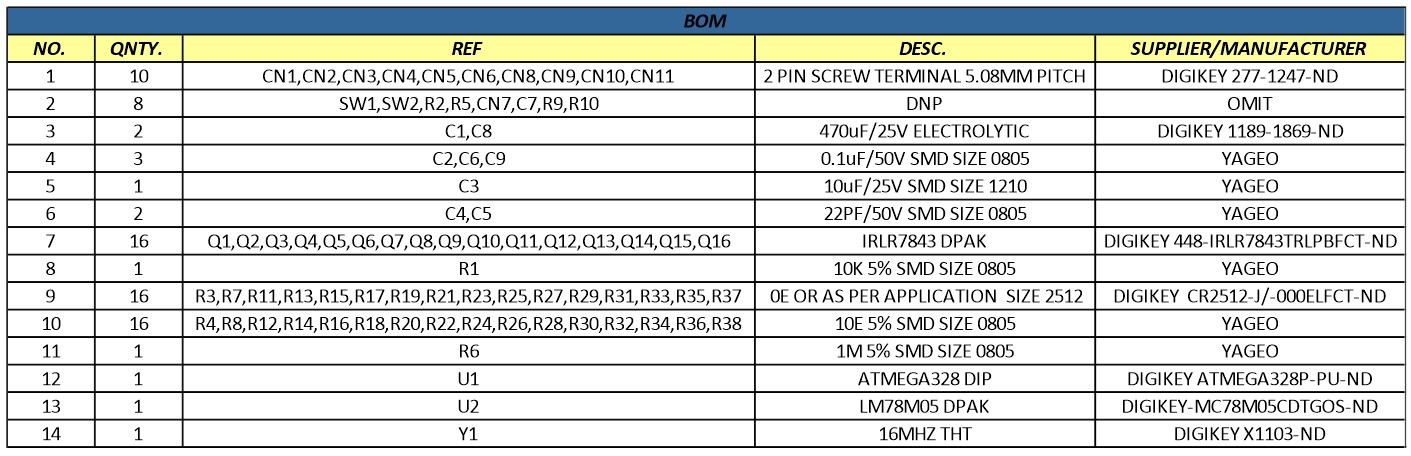

Parts List

NO.	QNTY.	REF	DESC.	SUPPLIER/MANUFACTURER
1	10	CN1,CN2,CN3,CN4,CN5,CN6,CN8,CN9,CN10,CN11	2 PIN SCREW TERMINAL 5.08MM PITCH	DIGIKEY 277-1247-ND
2	8	SW1,SW2,R2,R5,CN7,C7,R9,R10	DNP	OMIT
3	2	C1,C8	470uF/25V ELECTROLYTIC	DIGIKEY 1189-1869-ND
4	3	C2,C6,C9	0.1uF/50V SMD SIZE 0805	YAGEO
5	1	C3	10uF/25V SMD SIZE 1210	YAGEO
6	2	C4,C5	22PF/50V SMD SIZE 0805	YAGEO
7	16	Q1,Q2,Q3,Q4,Q5,Q6,Q7,Q8,Q9,Q10,Q11,Q12,Q13,Q14,Q15,Q16	IRLR7843 DPAK	DIGIKEY 448-IRLR7843TRLPBFCT-ND
8	1	R1	10K 5% SMD SIZE 0805	YAGEO
9	16	R3,R7,R11,R13,R15,R17,R19,R21,R23,R25,R27,R29,R31,R33,R35,R37	0E OR AS PER APPLICATION SIZE 2512	DIGIKEY CR2512-J/-000ELFCT-ND
10	16	R4,R8,R12,R14,R16,R18,R20,R22,R24,R26,R28,R30,R32,R34,R36,R38	10E 5% SMD SIZE 0805	YAGEO
11	1	R6	1M 5% SMD SIZE 0805	YAGEO
12	1	U1	ATMEGA328 DIP	DIGIKEY ATMEGA328P-PU-ND
13	1	U2	LM78M05 DPAK	DIGIKEY-MC78M05CDTGOS-ND
14	1	Y1	16MHZ THT	DIGIKEY X1103-ND
