Palmshell PuER N1 Mini PC (Networking PC) Features Four 2.5GbE Ethernet, 4G/5G and Much more

The Palmshell PuER N1 Mini PC or networking PC is an Intel Celeron J6412-based PC with four 2.5GbE ports up to 32GB DDR4 RAM, and multiple storage options including M.2 and SATA. Additionally, it has Wi-Fi 6E, Bluetooth 5.2, and optional 4G/5G connectivity. Other features of this PC include HDMI 2.0, USB ports, and a custom cooling system. All these features make this PC useful for applications like network attached storage(NAS), home routers, SDN, Home Server, and much more.

The Intel Celeron J6412 used in this networking PC is a 10th-generation Quad-core processor with 4 cores and 4 threads, with a base clock speed of 2.0 GHz and a boost clock speed of 2.6 GHz. It has 1.5 MB of L2 cache and a 10W of TDP. It also has Intel UHD Graphics for 10th Gen with a maximum frequency of 800 MHz and 16 execution units.

Previously, we have written about Palmshell Slim X2L mini PC which is the older version of this PC. We also have written about many different Mini PCs like the Mekotronics R58X RK3588 mini-computer, Mekotronics LS1200 live streaming box, and many other mini-PCs like the AAEON de next-TGU8-EZBOX, MINIX Z100-AERO, MINIX NEO Z100-0dB and many others, feel free to check those out if you are looking for a powerful mini-pc for yourself.

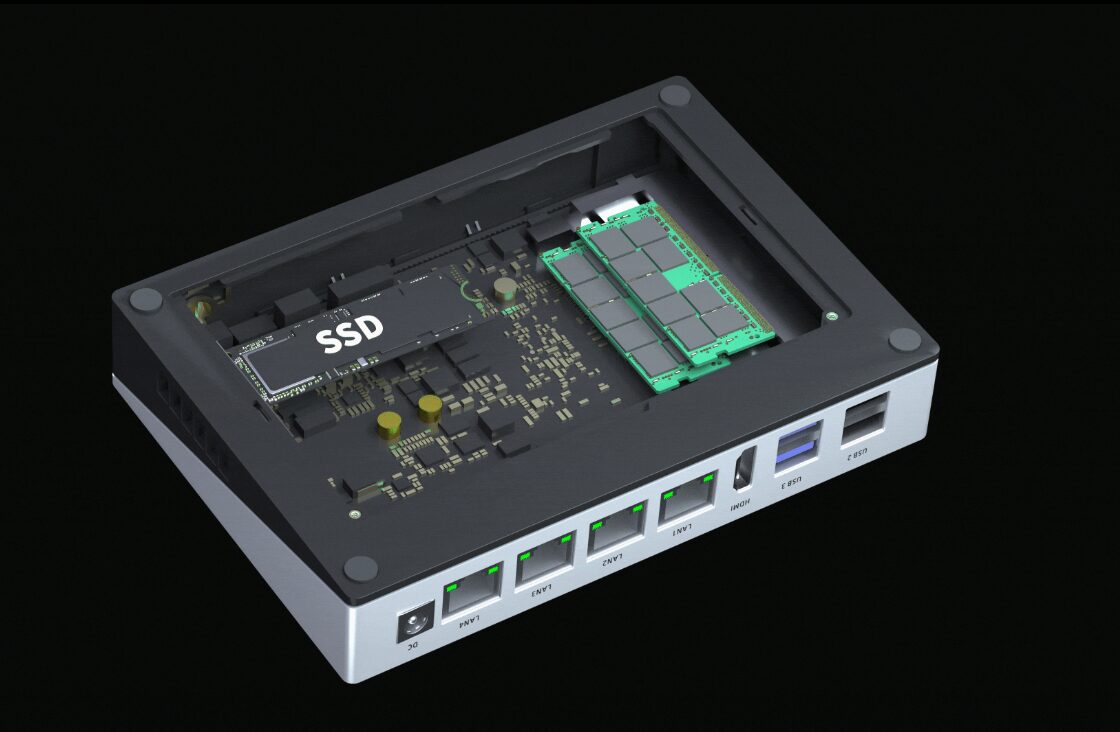

The company mentions that this networking PC supports up to 32GB of dual-channel DDR4 memory at 3200 MT/s and can be purchased with or without memory. In terms of storage, the mini PC supports up to 256GB to 1TB of SSD. Additionally, a SATA 7-pin connector is provided for further storage expansion. other features include four 2.5GbE RJ45 Ethernet ports supported by Intel I225 ethernet controller it also supports link aggregation, which facilitates fast data transfers.

The device supports 4K output via HDMI 2.0, on top of that it offers USB 3.1/2.0 ports, it also has a copper heatsink with a fan for cooling, and supports Wi-Fi 6E, Bluetooth 5.2, and 4G/5G modules.

Palmshell PuER N1 Mini PC Specifications

• Processor:
  • Intel Celeron Processor J6412 (4C/4T, 2.0 – 2.6 GHz)
• Graphics:
  • Intel UHD Graphics for 10th Gen Intel Processors (up to 800 MHz)
• Memory:
  • Up to 32 GB DDR4@3200MT/s SO-DIMM (Dual-channel)
  • Configurations: 8GB, 16GB, 32GB
• Storage:
  • 1x M.2 M Key for SATA SSD
  • Configurations: 256GB, 512GB, 1TB SSD (SATA)
  • 1x SATA 7-pin connector
• Networking:
  • 4x 2.5GbE RJ45 Ports (Intel I225)
  • Support link aggregation
  • 1x M.2 E Key for Wi-Fi 6E/BT 5.2 Module (Intel AX210NGW)
  • 1x M.2 B Key for 4G/5G Module
• Display:
  • 1x HDMI 2.0 (up to 4K)
• USB:
  • 2x USB 3.1
  • 2x USB 2.0
• Other I/O:
  • Power input: 12V DC 5525, at least 36W (power supply not included)
• Dimensions & Weight:
  • Enclosure dimensions: TBD
  • Weight: TBD
• Operating System:
  • Supports nearly all operating systems compatible with the x86 architecture (including ROOBI OS)
• Additional Notes:
  • Custom copper heatsink with 3000 RPM PWM speed control fan (TDP 25W)
  • Barebone and pre-configured models are available
  • Pricing and availability TBD
• Dimensions: Not Mentioned

The company mentions that the Networking PC supports mostly all operating systems that are compatible with the x86 architecture. The module also supports ROOBI OS, which works with both the SLiM X2L and the ROCK 5 ITX. more information about this can be found on the company’s wiki page.

At the time of writing the Palmshell PuER N1 Mini PC is not yet available for purchase but more information can be found on their products page or you can check out the Palmshell website for more information.
