Arduino Compatible OLED Board with 4 Channel 16-Bit ADC

Rajkumar Sharma
312 Views
moderate
Tested
SKU: EL143653
Quote Now
7 Likes

This board consists of Arduino-compatible hardware which includes an OLED display, ADS1115 4-Channel 16Bit ADC, Arduino-compatible Microcontroller ATMEGA328, a connector for Arduino Programming, a connector for 4 Channel Analog input, and a connector for a couple of I/O lines. Operating supply 5V DC.

The ADS1115 device is a precision, low-power, 16-bit, I2C-compatible, analog-to-digital converter (ADCs). It incorporates a low-drift voltage reference and an oscillator. The ADS1115 also incorporates a programmable gain amplifier (PGA) and a digital comparator. These features, along with a wide operating supply range, make the ADS1115 well-suited for power- and space-constrained, sensor measurement applications.

The ADS1115 performs conversions at data rates of up to 860 samples per second (SPS). The PGA offers input ranges from ±256 mV to ±6.144 V, allowing precise large- and small-signal measurements. The ADS1115 features an input multiplexer (MUX) that allows two differential or four single-ended input measurements. Use the digital comparator in ADS1115 for under and overvoltage detection.

The ADS1115 operates in either continuous-conversion mode or single-shot mode. The devices are automatically powered down after one conversion in single-shot mode; therefore, power consumption is significantly reduced during idle periods.

Features

Supply 5V DC
Supports 0.96Inch OLED Display with I2C
4 Channel ADC (2 Differential Inputs or 4 Single-Ended Inputs
Header Connector for Arduino Programming
Header Connector for 4 Channel Analog Inputs and Power Supply
Header Connector for Extra I/O Lines

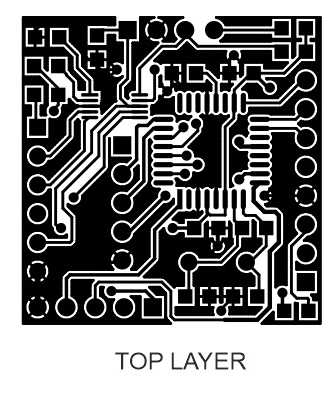

Compact PCB Same Size as OLED Display
PCB Dimensions 27.62 x 26.83 mm

Connections

CN1: Pin 1 TX, Pin 2 RX, Pin 3 Reset, Pin 4 GND, Pin 5 VCC, Pin 6 D11, Pin 7 D12, Pin 8 D13
CN2: Pin 1 VCC, Pin 2 GND, Pin 3 SLA, Pin 4 SDA (OLED Display)
CN3: Pin 1 VCC, Pin 2 Analog Input 0, Pin 3 Analog Input 1, Pin 4 Analog Input 2, Pin 5 Analog Input 3, Pin 6 GND
CN4: Pin 1 VCC, Pin 2 D9, Pin 3 D5, Pin 4 D3, Pin 5 GND
CN5: Pin 1 VCC, Pin 2 A2, Pin 3 A3, Pin 4 D6 Pin 5 GND

Schematic

Parts List

NO.	QNTY.	REF.	DESC.	MANUFACTURER	SUPPLIER	SUPPLIER PART NO
1	1	CN1	8 PIN MALE HEADER PITCH 2.54MM	WURTH	DIGIKEY	732-5321-ND
2	1	CN2	4 PIN MALE HEADER PITCH 2.54MM	WURTH	DIGIKEY	732-5317-ND
3	1	CN3	6 PIN MALE HEADER PITCH 2.54MM	WURTH	DIGIKEY	732-5319-ND
4	2	CN4,CN5	5 PIN MALE HEADER PITCH 2.54MM	WURTH	DIGIKEY	732-5318-ND
5	3	C1,C3,C4	0.1uF/50V CERAMIC SMD SIZE 0805	YAGEO/MURATA	DIGIKEY
6	1	C2	10uF/10V CERAMIC SMD SIZE 0805	YAGEO/MURATA	DIGIKEY
7	2	C5,C6	22PF/50V CERAMIC SMD SIZE 0805	YAGEO/MURATA	DIGIKEY
8	1	L1	FERRITE BEAD	WURTH	DIGIKEY	732-6706-1-ND
9	5	R1,R2,R3,R4,R5	10K 5% SMD SIZE 0805	YAGEO/MURATA	DIGIKEY
10	1	R6	1M 5% SMD SIZE 0805	YAGEO/MURATA	DIGIKEY
11	1	U1	ATMEGA328TQPF-32	MICROCHIP	DIGIKEY	ATMEGA328P-AURCT-ND
12	1	U2	ADS1115	TI	DIGIKEY	296-38849-2-ND
13	1	X1	16Mhz	ECS INC	DIGIKEY	X1103-ND
